Car Specs
Length: 16.7 inches (423mm)
Front Track: 7.7 inches (195mm)
Rear Track: 7.9 inches (200mm)
Ground Clearance: 0.3 inches (9mm)
Weight: 4.4lbs (1.89kg) with body (with battery)
Height (ride): 5.9 inches (151mm)
Wheelbase: 11.8 inches (300mm)
Shock Length: 1.5 inches (39mm) (front and rear)
Tire Diameter: 2.8 inches (73mm)
Tire Width (front): 1.1 inches (28mm)
Tire Width (rear): 1.3 inches (32mm)
Wheel Diameter: 2.1 inches (54mm)
Speed Control: XL-5™ Waterproof FWD/REV ESC with Low Voltage Detection (LVD)
Motor (electric): Titan® 12T 550 (12-Turn)
Transmission: Single Speed Direct Drive
Overall Drive Ratio: 11.38
Differential Type: Sealed, Hardened Steel Bevel, Limited Slip
Gear Pitch: 48
Chassis Structure/Material: Molded Tub / Nylon Composite
Brake Type: Electronic
Drive System: Shaft-Driven 4WD
Steering: Dual-Bellcrank
Radio System: TQ™ 2.4GHz Transmitter
Servo: #2075 High Torque Waterproof
Top Speed: 30+mph (with included optional pinion gear)
Skill Level: 1
Battery Tray: 158mm long / 46mm wide / 23 or 26mm high
Motor Specs
Type: High-speed brushed motor
Weight: 240g (8.47oz)
Can Length: 3.07 inches (78mm) overall length, 2.24 inches (57mm) can length
Diameter: 1.41 inches (36mm)
Shaft Size: 3mm
Connector Type: Bullet
ESC Specs
Input Voltage: 4-7 Cells (4.8 to 8.4 Volts DC)
Case Size: 1.23in W x 2.18in D x 0.61in H
Weight: 69.2g (2.44oz)
Motor Limit: 15-turns** (540 Size)
12-turns** (550 Size)
On Resistance Forward: 0.007 Ohms
On Resistance Reverse: 0.014 Ohms
BEC Voltage: 6.0 VDC
BEC Current: 1A
Power Wire: 14 Gauge / 5 inches
Input Harness Wire: 26 Gauge / 9 inches
PWM Frequency: 1600 Hz
Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
Thermal Protection: Thermal shutdown
Profile Selection:
Sport Mode: 100% FWD, 100% brakes, 100% REV
Race Mode: 100% FWD, 100% brakes, no REV
Training Mode:* 50% FWD, 100% brakes, 50% REV
Single-button setup: Yes, Traxxas EZ-Set®
**Properly geared *Patented
Features List
Replica Factory Five Hot Rod ProGraphix® Bodies
Front clipless body mount
Injection molded details
Front grille, side mirrors, headlight housings
Custom graphics
Factory LED Lighting
Detailed chrome headlights
Rear red LED lenses
High-Performance Waterproof XL-5™ Electronic Speed Control
Innovative waterproof design
Three drive profiles
Sport Mode - forward / brake / reverse
Race Mode - forward / brake
Training Mode™ - 50% forward / brake / 50% reverse (patented)
Traxxas EZ-Set® one-button setup
LiPo and NiMH compatible with two-stage low-voltage
TQ™ 2.4GHz Radio System
Traxxas #6519 3-channel micro receiver
Patented O-ring sealed watertight receiver box keeps the micro receiver dry
Motor
Powerful Titan™ 12T 550 modified motor with internal cooling fan
Fixed gear mesh motor plate makes setting gear mesh simple with 11 different gearing positions
30+mph with included optional pinion gear
Molded wire retainer keeps motor wires secure
Steering
High-torque waterproof Traxxas #2075 steering servo
Precise servo saver integrated into servo horn
High steering angle option
Low Center of Gravity (Low CG) Chassis
Positions weight low for improved handling
Smooth underside resists drag and snags
Angled front bumper improves approach angle
Modular interlocking chassis pieces
Improves rigidity and tightens tolerances
Allows for easy maintenance
High Performance Suspension
Captured links won’t pop off
Geometry tuned for precise handling
Dual rear camber link mounts
Adjustable droop
Adjustable Battery Hold Down
Easy, secure battery installation
Swivels to allow different height batteries
Locks securely without pins or parts to lose
Efficient Direct All-Wheel Drive
Full-time shaft driven 4-wheel drive
Steel center driveshaft with center bearing support
Direct drive
Sealed, silicone-filled differential
Brushless ready for easy Velineon brushless power upgrade
Wheels and Tires
Replica black Salt Flat-style wheels
Mirror chrome trim rings
High-performance tires with long-wearing compound
Wider rear tires for a more aggressive stance
Replica brake discs incorporate standard 12mm wheel hexes
Springs and Shocks
Fully adjustable oil-filled GTR shocks with X-ring technology
Threaded bodies for easy ride height adjustment
Red powder coated shock springs feature a responsive spring rate
Rubber-Sealed Ball Bearings
Requires Traxxas 7-Cell NiMH “flat pack” or 2-Cell LiPo Battery and Charger (Sold Separately)
Backed by Unparalleled Traxxas Support and Parts Availability
What’s Included

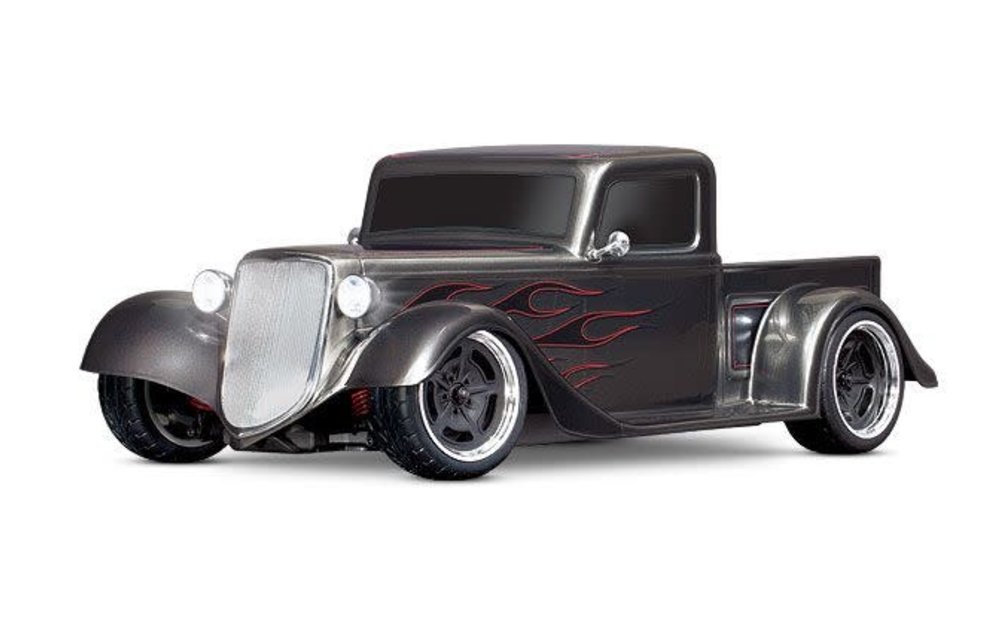

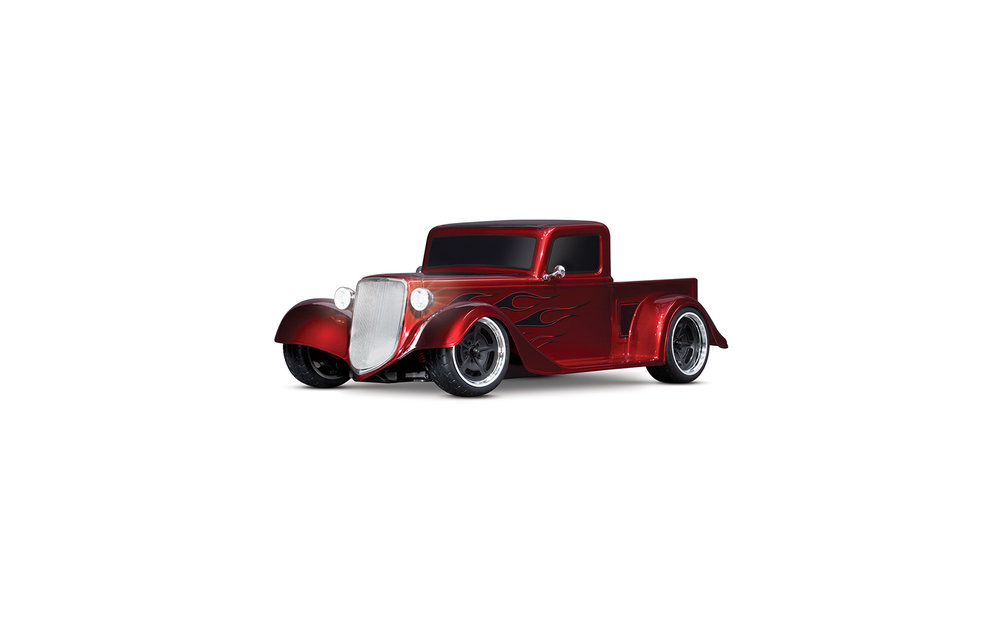

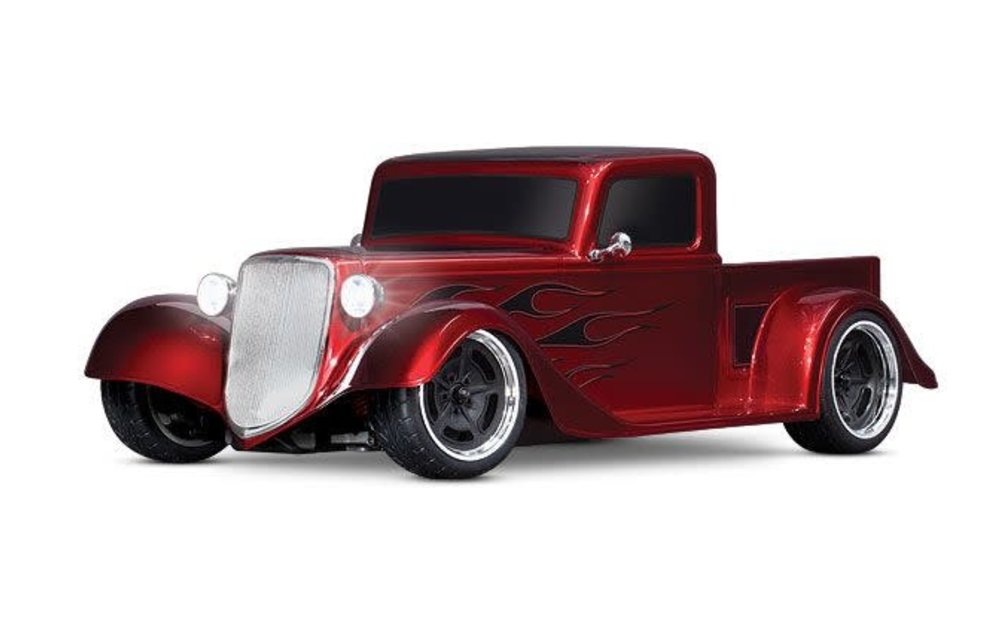

MODEL 93034-4: 1/10 scale Factory Five replica Hot Rod with 1935 Truck ProGraphix® body, fully assembled, Ready-To-Race®, with TQ™ 2.4GHz Radio System, XL-5® Electronic Speed Control, and Titan® 12T 550 motor.
What’s In The Box:
Traxxas Factory Five replica Hot Rod, Ready-To-Race® Model with Titan® 12T 550 Motor
XL-5™ Waterproof Electronic Speed Control
TQ™ 2.4GHz Radio System
Quick Start Guide
High Quality Maintenance Tools
Optional High Speed Pinion Gear
What You’ll Need:
Battery Pack
Traxxas Hot Rods require the use of a 7-Cell NiMH “flat pack” or 2-Cell LiPo Battery equipped with a Traxxas High Current Connector.
Charger
Traxxas EZ-Peak Plus (model #2970) recommended.
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
